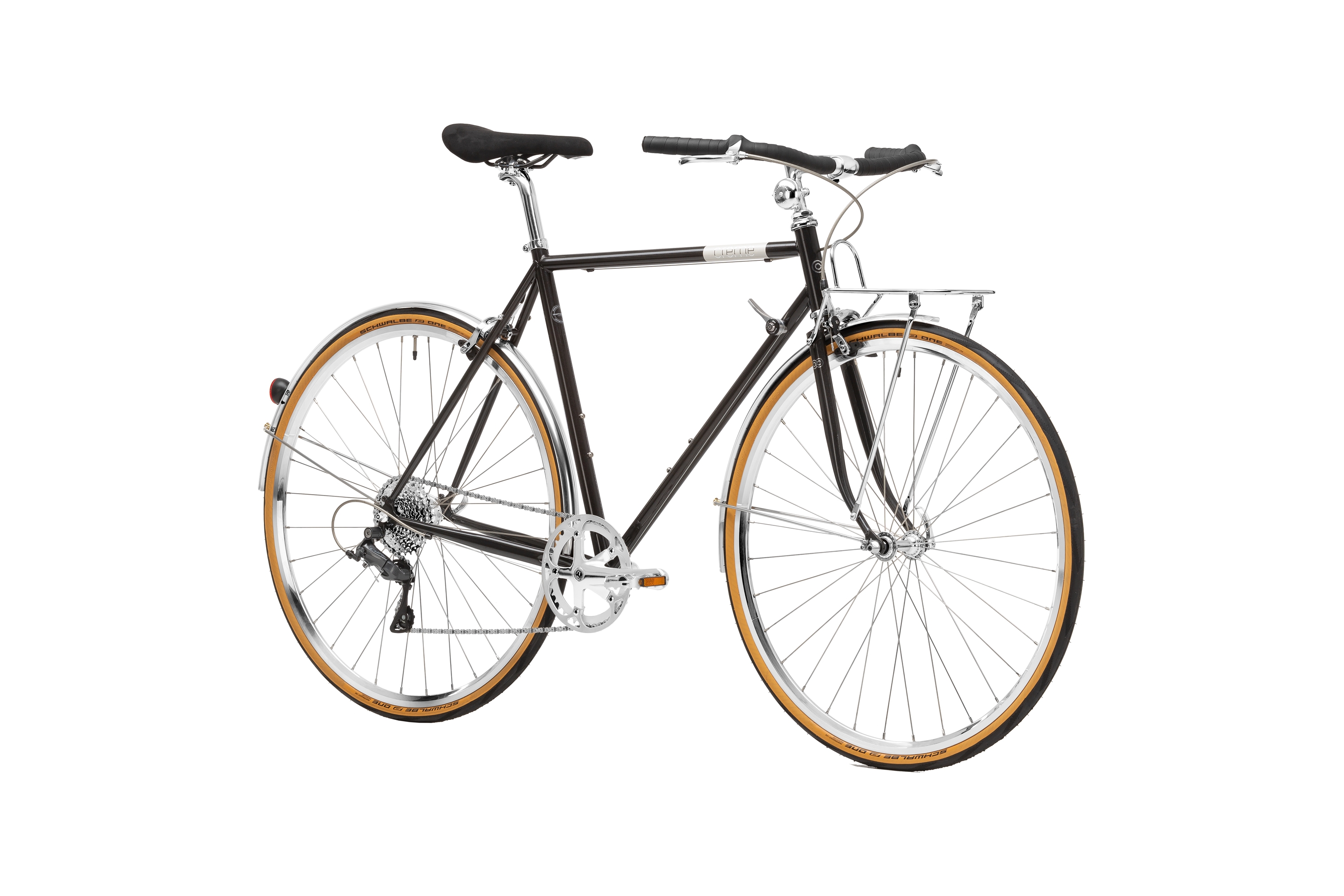

The Echo Uno City is the perfect choice for a fast spin around the city. Built around a welded steel frame and Cromoly fork with invest cast crown. Fast and comfortable with reliable components including a Shimano Claris 1x8 speed, a stylish Creme alluminium crankset, down tube shifter, Caliper brakes and Sunrace cassette 11-32T. Clearance for up to 37mm tyres with fenders. This bike is especially fitted for the city, with narrow shine fenders, a small chrome plated front rack for your laptop bag, Creme saddle and durable Michelin tyres. Finished in a high-end multi layer gloss paint in Onyx. The ideal choice for anyone who needs a compromise between taxi and metro.
SIZES: S / M / L
RECOMMENDED RIDER HEIGHT (CM): 160-168 / 168-177 / 177-190
SEAT TUBE LENGTH (MM): 510 / 550 / 605
EFFECTIVE TOP TUBE (MM): 540 / 561 / 575
CHAINSTAY LENGTH (MM): 425
HEADTUBE ANGLE (°): 72 / 73 / 74
SEAT TUBE ANGLE (°): 74 / 73 / 73
HEADTUBE LENGTH (MM): 110 / 130 / 170
WHEELBASE (MM): 989 / 1000 / 1025
BOTTOM BRACKET DROP (MM): 70
FORK OFFSET (MM): 45
AXLE TO CROWN (MM): 367
Frame: lugged steel frame
Sizes: MEN: S, M, L LADY: S/M, M/L
Fork: cromoly steel fork, lugged, 1", with invest cast crown

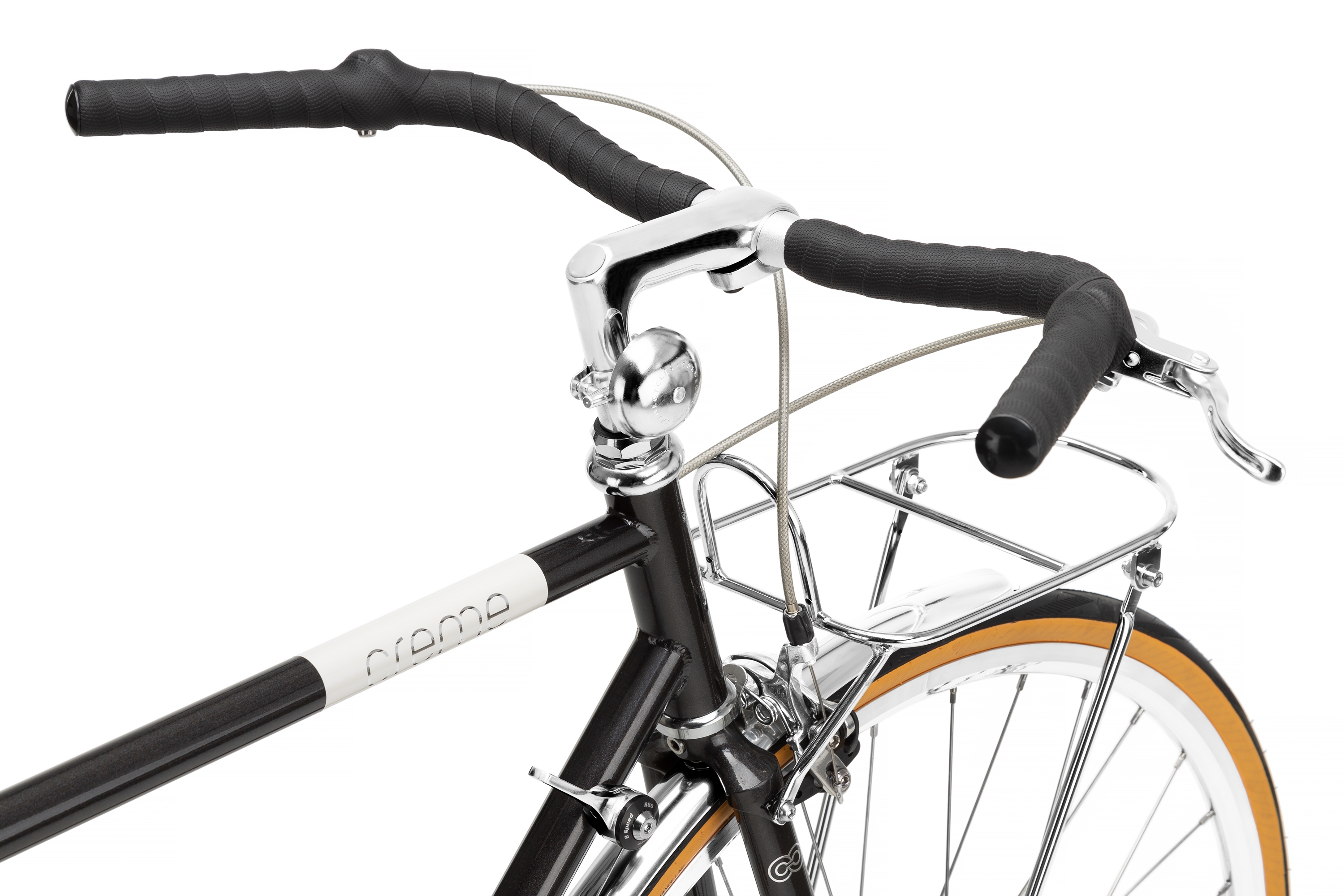

Handlebar: aluminium, width: 560mm, rise: 15mm, backsweep: 62, bar bore: 25,4mm
Grips: Velo grips
Stem: aluminium quill stem, 100mm,80mm*, high polish
Saddle: Creme microsuede cover
Seatpost: aluminium 26,0mm
Brake front: Promax caliper, dual pivot
Brake rear: Promax caliper, dual pivot
Shifters: Sunrace SLR80 R8 DT shifter
Crankset: Creme aluminium 42t, 170mm
Bottom bracket: square taper, 68mm shell
Deraileur front: --

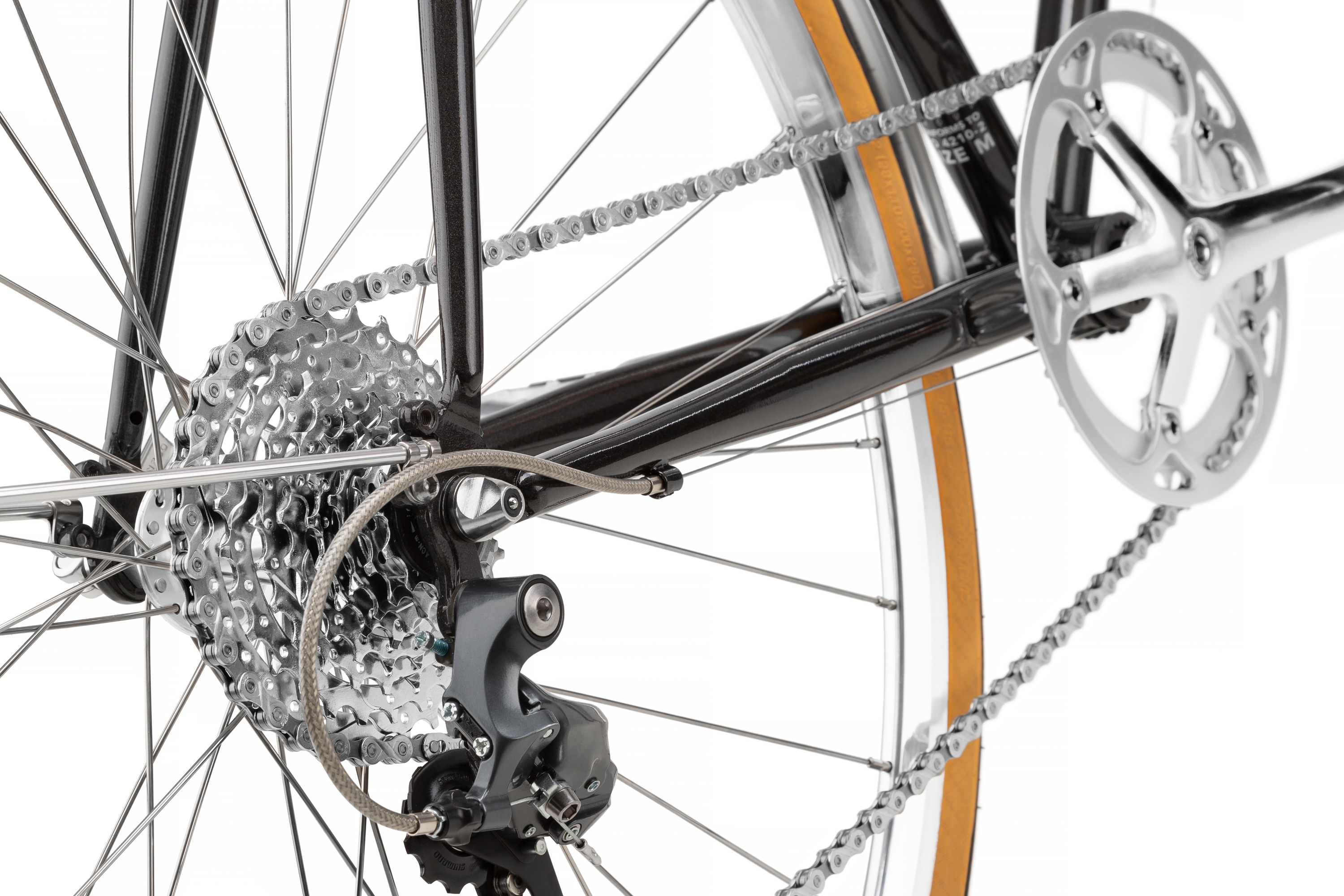

Deraileur rear: Shimano Claris short cage
Cassette: Falcon 11-32, 8-speed
Chain/belt: KMC X8
Hub front: aluminium road hub, sealed bearings, 32H, QR
Hub rear: aluminium road hub, sealed bearings, 32H, QR
Rims: aluminium doublewall 700C, road racing
Tyres: Michelin Dynamic Sport 700X28c or Michelin Dynamic Classic 700x28c*
Carrier / Basket: ---
Mudguards polished anodized silver
Headset: threaded, 1”
Light front: ---
Light rear: ---
Pedals: FP-980AZU
Spokes: stainless steel
Stand: ---
Additional stylish bell
Weight: 10,9kg
Seat Tube Diameter: 28,6 mm
Seatpost diameter: 26,0/350mm
Pedal thread: 9/16"
Stem clamp size: bar bore 26mm, dia 22,2mm,
Max tyre: 37-622, 700X35C
Electric Drive ---
Battery ---
