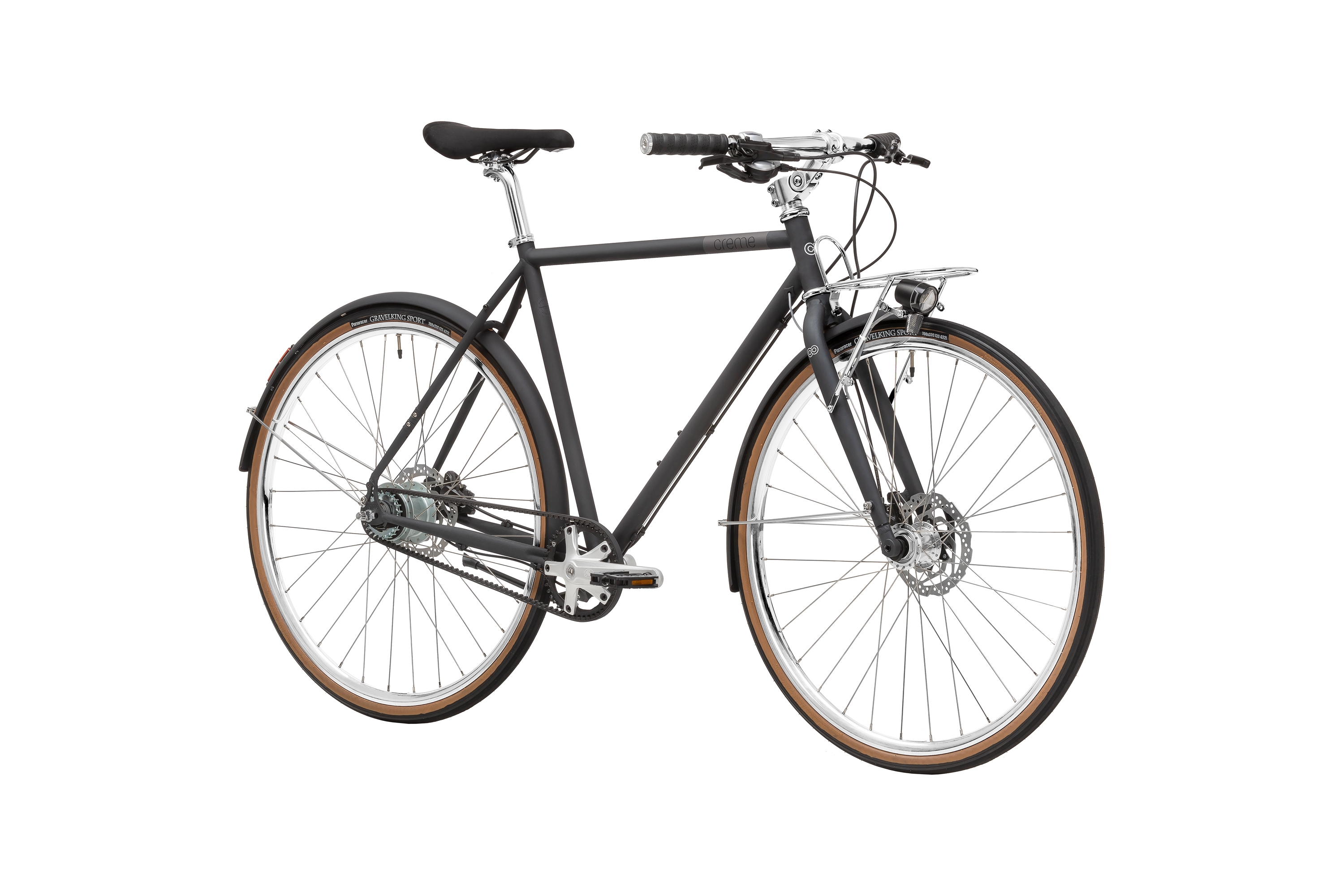

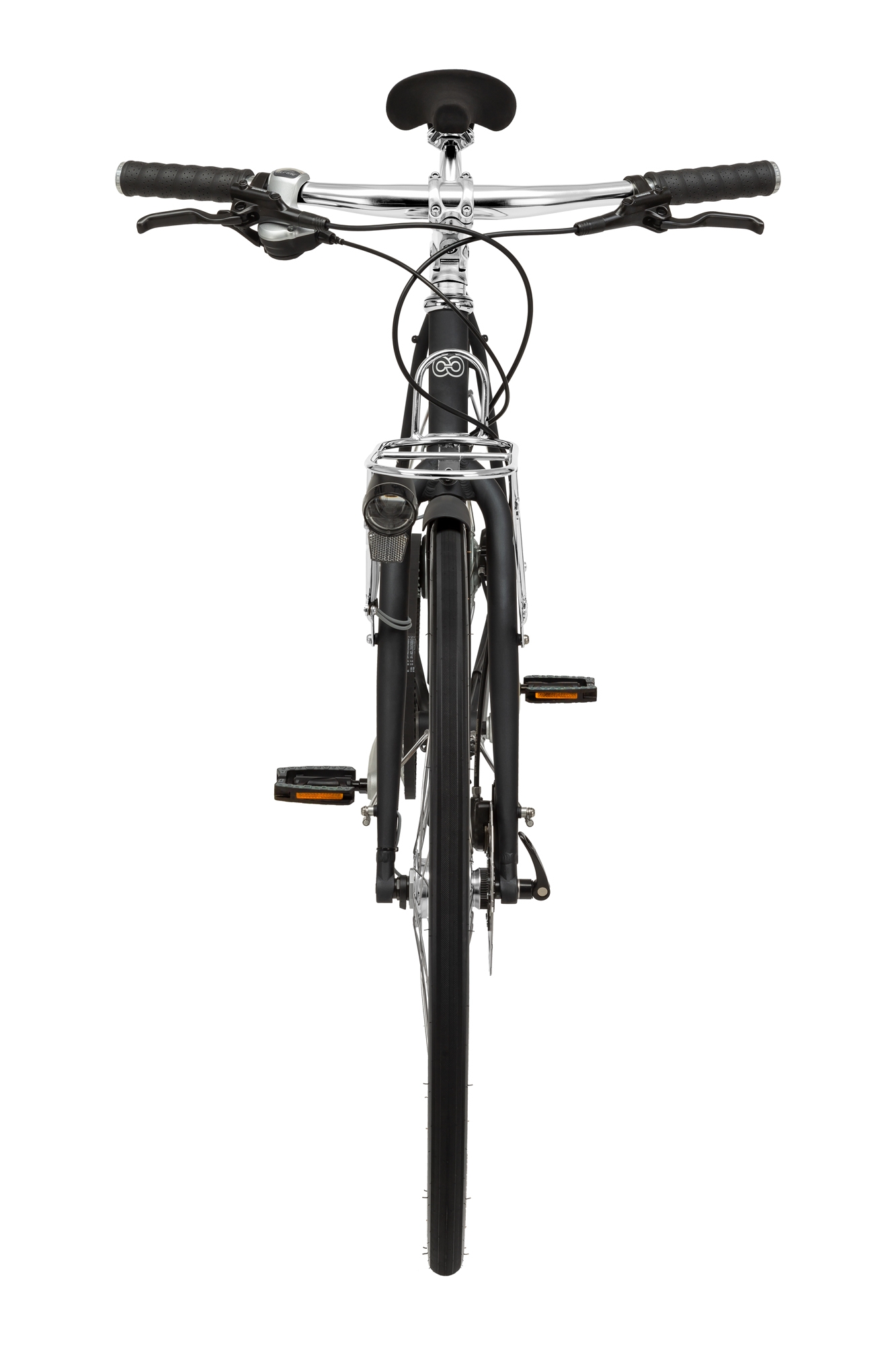

The Bolt is made to go very fast! Built around a lightweight welded Cromoly steel frame and alluminium fork, paired with an 8 or 7 speed Shimano Nexus internal geared hub and a belt drive system that is clean and service free. A Creme saddle and gummy Creme grips with alluminium bar ends look elegant and are a pleasure to touch. Thick stays and leather washers keep mud guards stable and silent. A stainless steel front rack is super practical for carrying luggage. Finished in a high-end multi layer matte paint with a powder clear coat in Carbon Gray. Safety at night thanks to dynamo LED lights. The Bolt ST is also available with a step-through version, ideal for shorter people. These classic-looking bicycles are the perfect choice for your everyday commute.
SIZES: S / M / L
RECOMMENDED RIDER HEIGHT (CM): 158-170 / 168-178 / 177-192
SEAT TUBE LENGTH (MM): 495 / 550 / 605
EFFECTIVE TOP TUBE (MM): 546 / 562 / 587
CHAINSTAY LENGTH (MM): 432
HEADTUBE ANGLE (°): 70 / 71 / 71
SEAT TUBE ANGLE (°): 73
HEADTUBE LENGTH (MM): 105 / 115 / 155
WHEELBASE (MM): 1048 / 1056 / 1073
BOTTOM BRACKET DROP (MM): 74
FORK OFFSET (MM): 45
AXLE TO CROWN (MM): 413
Frame: tig welded cromoly steel frame
Sizes: S, M, L
Fork: aluminium fork 1 1/8", 12mm through axle

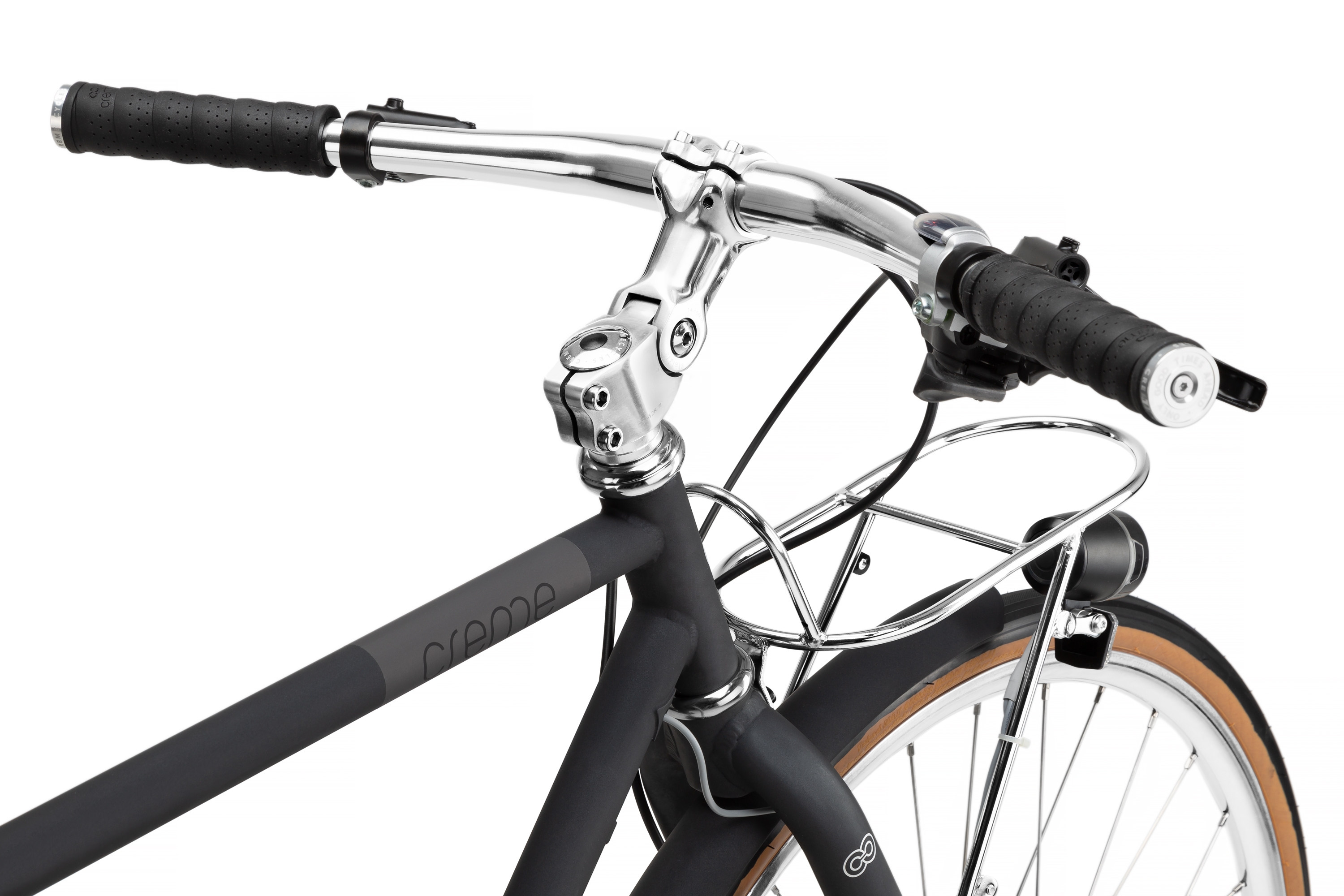

Handlebar: “banana” type, aluminium, width: 600 mm, barbore: 31,8 mm
Grips: Creme Gummy Grips with alloy bar-ends
Stem: aluminium adjustable a-head stem, 90mm for size S, 110mm for size M and L
Saddle: Creme microsuede cover
Seatpost: aluminium, 26,6mm
Brake front: Shimano MT200 or Lanxi Nutt Y2A, hydraulic disc brakes with 160 mm rotor
Brake rear: Shimano MT200 or Lanxi Nutt Y2A, hydraulic disc brakes with 160 mm rotor
Shifters: Shimano Nexus 8 speed trigger shifter or Nexus 7 speed revo shifter
Crankset: Gates, CDN aluminium, 170 mm, 46t Gates CDN ring
Bottom bracket: square taper, 68mm shell
Deraileur front: ---
Deraileur rear: ---
Cassette: ---
Chain/belt: GATES CDN BELT DRIVE
Hub front: Shimano Dynamo, centerlock, for 12mm through axle, 32H

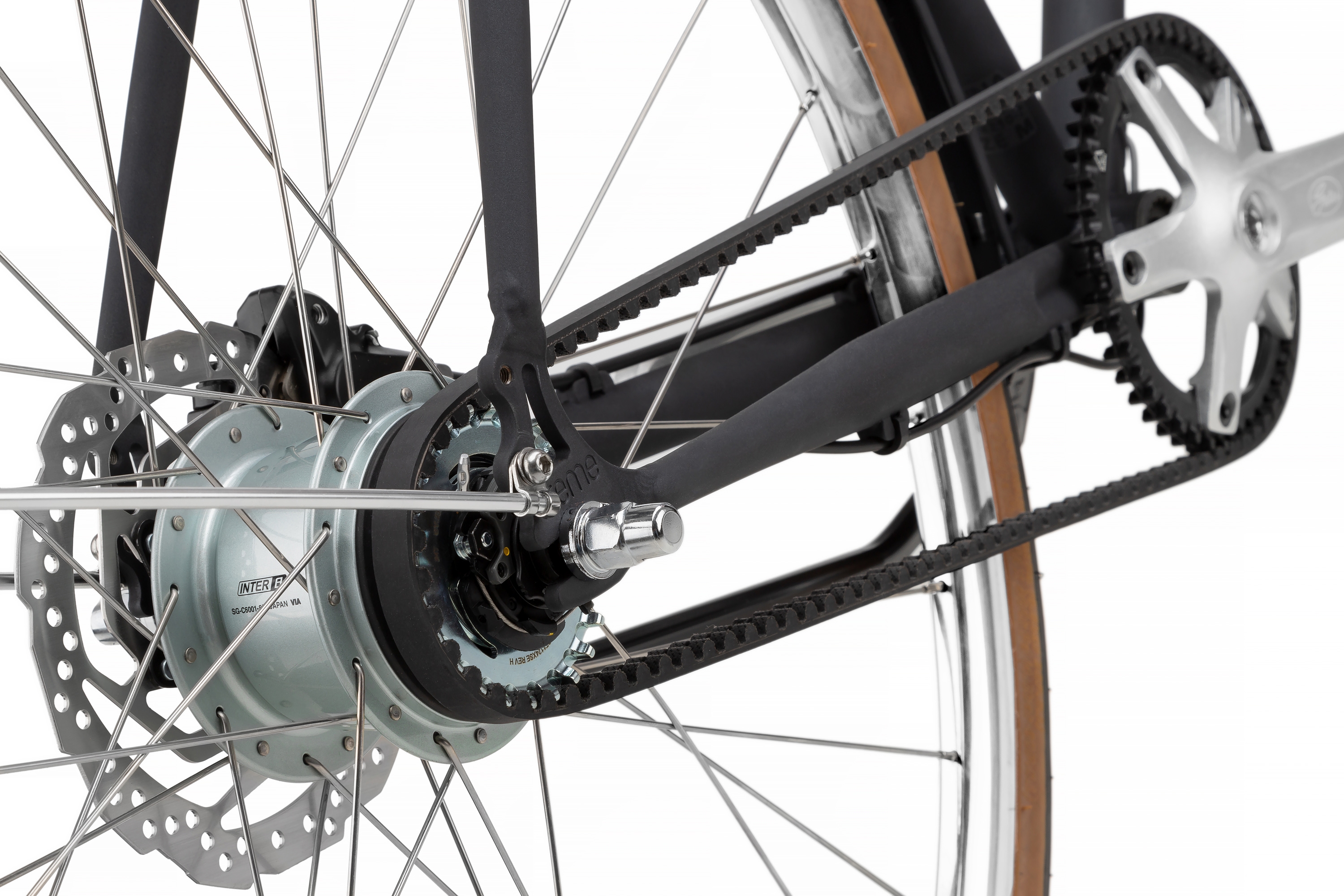

Hub rear: Shimano Nexus SG-C6001-8D 8-speed hub, 32H, Gates CDN, 24t sprocket or Nexus SG-C3001-7S 7-speed hub, 32H, 22t sprocket
Rims: disc brake, aluminium, double wall
Tyres: Panaracer Gravel King 32-622, 700X32C
Carrier / Basket: Creme front rack stainless steel
Mudguards: aluminium painted
Headset: threadless 1 1 /8''
Light front: Creme LED, dynamo powered, 60 lux, STVZO compatible
Light rear: LED, dynamo powered, mudguard integrated
Pedals: FP 212
Spokes: stainless steel
Stand: aluminium
Additional: stylish bell
Weight: 14 kg
Seat Tube Diameter: 28,6 mm
Seatpost diameter: 26,6/350mm
Pedal thread: 9/16"
Stem clamp size: bar bore 25.4
Max tyre: 35-622, 700X35C
Electric Drive: ---
Battery: ---
