The Echo Uno is the perfect choice for a fast spin around the city. Built around a welded steel frame and Cromoly fork with invest cast crown. Fast and comfortable with reliable components including a Shimano Claris 1x8 speed, astylish Creme aluminum crankset, down tube shifter, Caliper brakes and a Sunrace cassette 11-32T. Clearance for up to 37mm tyres with fenders. Front rack compatible with a comfy Creme saddle. Polished rims and a classic 1” quill stem and flat albatros bar complete the package. Finished in a high-end multi layer gloss paint in Blue Clay. This bike is the ideal choice for anyone who needs a compromise between taxi and metro.
SIZES: SM / ML
RECOMMENDED RIDER HEIGHT (CM): 150-175 / 165-180
SEAT TUBE LENGTH (MM): 470 / 550
EFFECTIVE TOP TUBE (MM): 547 / 556
CHAINSTAY LENGTH (MM): 425
HEADTUBE ANGLE (°): 72
SEAT TUBE ANGLE (°): 73
HEADTUBE LENGTH (MM): 125 / 145
WHEELBASE (MM): 1001 / 1010
REACH (MM): 381 / 383
BOTTOM BRACKET DROP (MM): 70
FORK OFFSET (MM): 45
AXLE TO CROWN (MM): 377
Frame: lugged steel frame
Sizes: MEN: S, M, L LADY: S/M, M/L
Fork: cromoly steel fork, lugged, 1", with invest cast crown

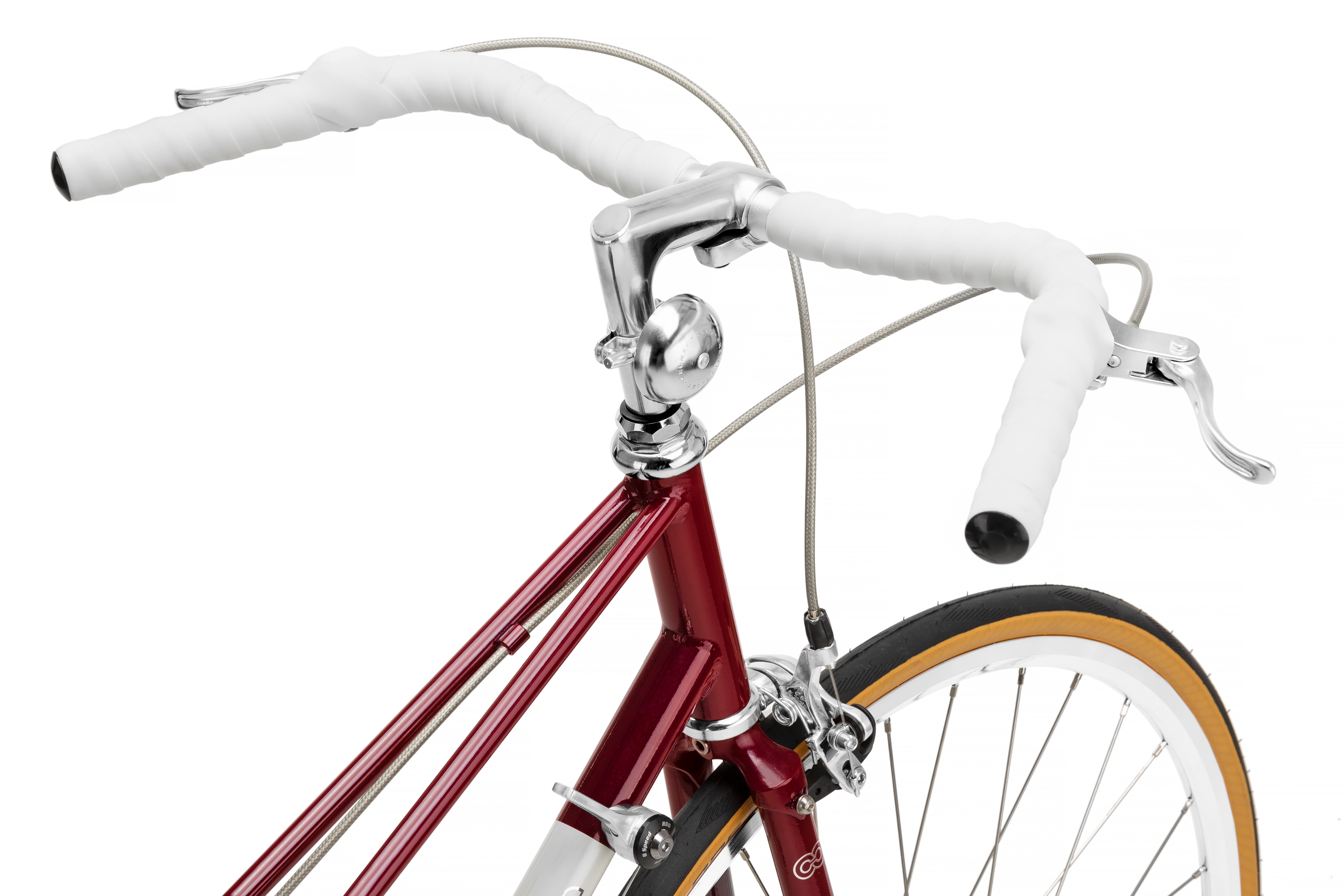

Handlebar: aluminium, width: 560mm, rise: 15mm, backsweep: 62, bar bore: 25,4mm
Grips: Velo grips
Stem: aluminium quill stem, 100mm,80mm*, high polish
Saddle: Creme microsuede cover
Seatpost: aluminium 26,0mm
Brake front: Promax caliper, dual pivot
Brake rear: Promax caliper, dual pivot
Shifters: Sunrace SLR80 R8 DT shifter
Crankset: Creme aluminium 42t, 170mm
Bottom bracket: square taper, 68mm shell
Deraileur front: --
Deraileur rear: Shimano Claris short cage

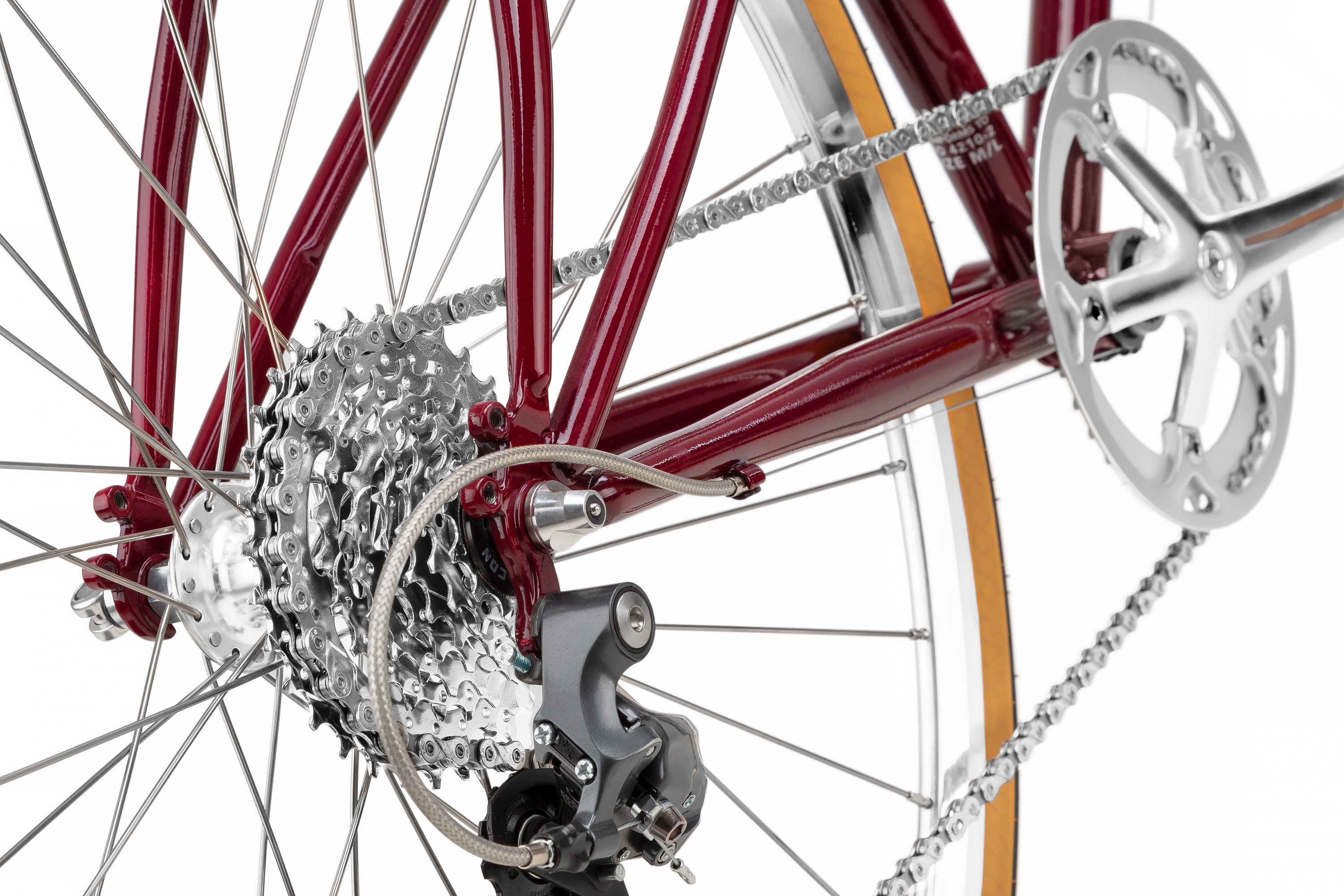

Cassette: Falcon 11-32, 8-speed
Chain/belt: KMC X8
Hub front: aluminium road hub, sealed bearings, 32H, QR
Hub rear: aluminium road hub, sealed bearings, 32H, QR
Rims: aluminium doublewall 700C, road racing
Tyres: Michelin Dynamic CLASSIC 700x28C
Carrier / Basket: ---
Mudguards: ---
Headset: threaded, 1”
Light front: ---
Light rear: ---
Pedals: FP-980AZU
Spokes: stainless steel
Stand: ---
Additional: stylish bell
Weight: 10,9kg
Seat Tube Diameter: 28,6 mm
Seatpost diameter: 26,0/350mm
Pedal thread: 9/16"
Stem clamp size: bar bore 26mm, dia 22,2mm,
Max tyre: 37-622, 700X35C
Electric Drive: ---
Battery: ---
