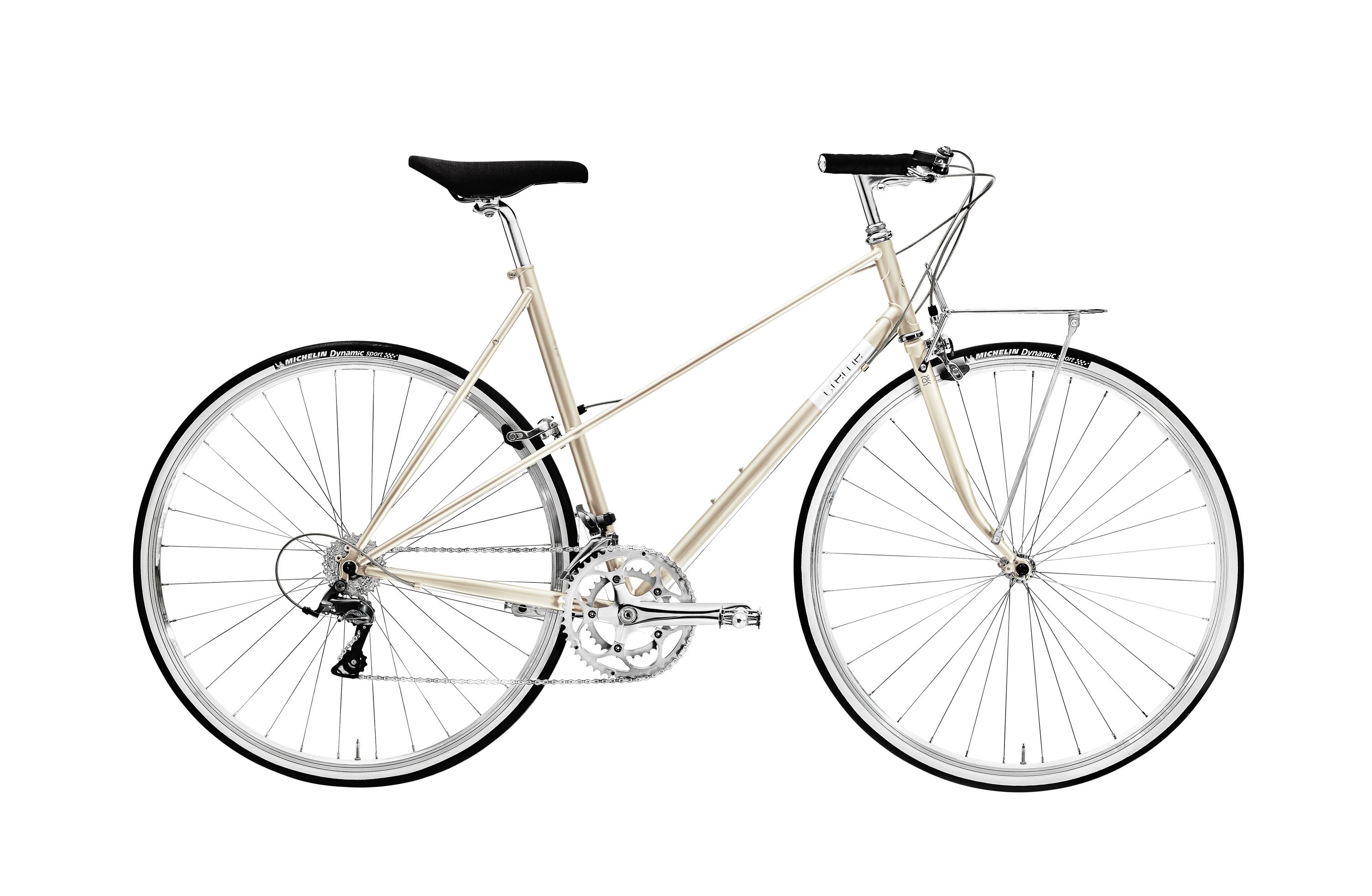

The Echo Solo features a welded steel frame with Cromoly front triangle for fine handling and great looks. Equipped with a stylish Creme alluminium crankset and 16-speed Shimano drivetrain controlled by modern Shimano Claris STI shifters. Clearance for up to 37mm tyres with fenders. You will find some nice touches such as polished rims and a classic 1” quill stem. Front rack compatible with a comfy Creme saddle. Finished in a high-end multi layer gloss paint in light gray. This bike is the ideal choice for anyone who wants to get a first taste of how good road cycling can be.
Geometry Men: S / M / L
Seat tube: 510 / 550 / 605
Top tube (Horizontal): 521 / 555 / 591
Chainstay: 405
Head angle: 71,5 / 72,5 / 73.5
Seat angle: 74 / 73 / 73
Geometry Ladies: S-M / M- L
Seat tube: 470 / 550
Top tube (Horizontal): 547 / 556
Chainstay: 425
Head angle: 72
Seat angle: 73
Frame: lugged steel frame
Sizes: MEN: S, M, L LADY: S/M, M/L
Fork: cromoly steel fork, lugged, 1", with invest cast crown

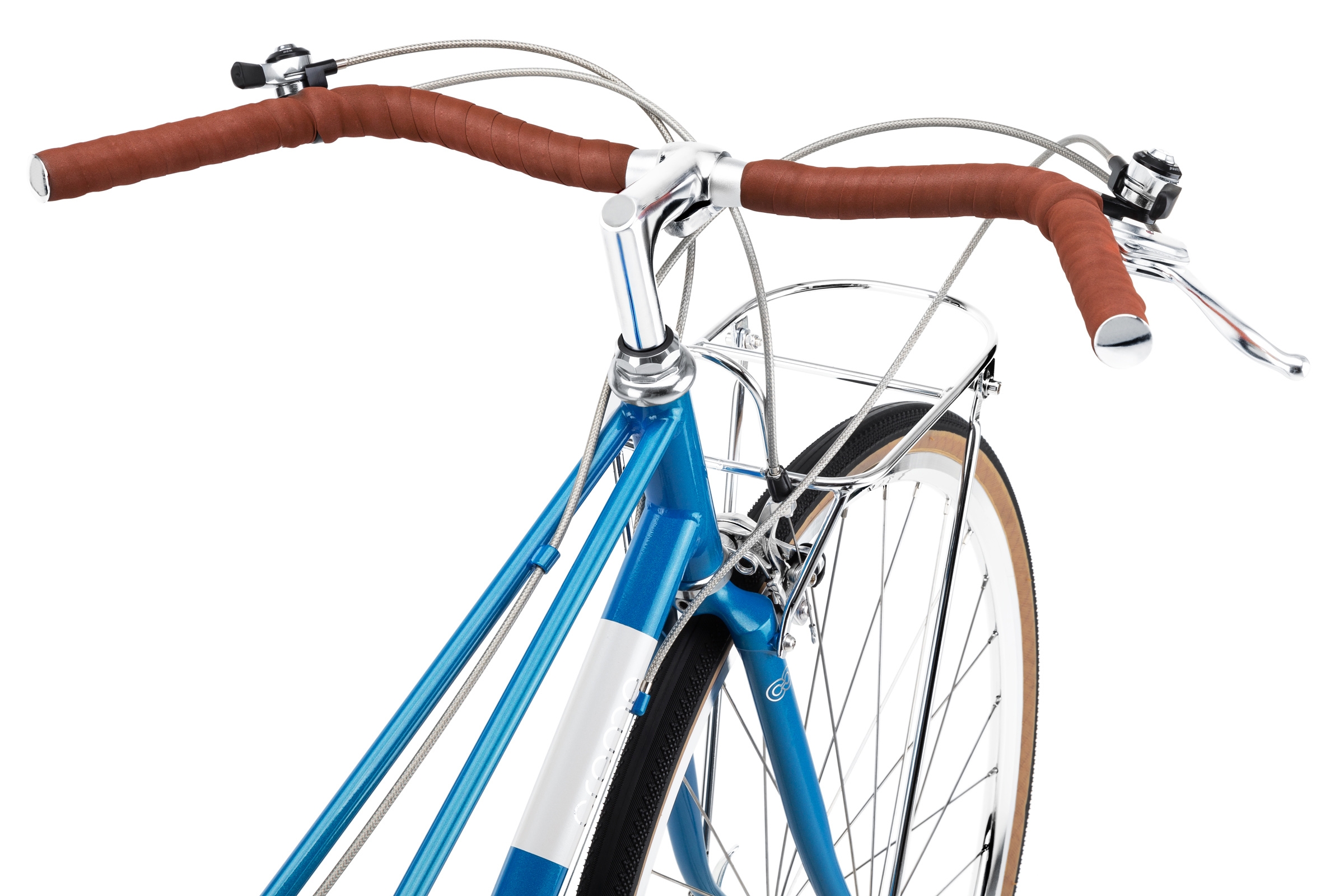

Handlebar: *flat bar width: 560mm, rise: 15mm, backsweep: 62, bar bore: 25,4mm drop bar, width: 420mm, barbore: 26,0mm, drop: 120mm, reach: 75mm
Grips: Velo bar tape
Stem: aluminium quill stem, 100mm, 80mm*, high polish
Saddle: Creme microsuede cover
Seatpost: aluminium 26,6mm
Brake front: Promax caliper, dual pivot
Brake rear: Promax caliper, dual pivot
Shifters: Shimano Claris R2000 STI / Sunrace SLM96 R8 thumb shifters*

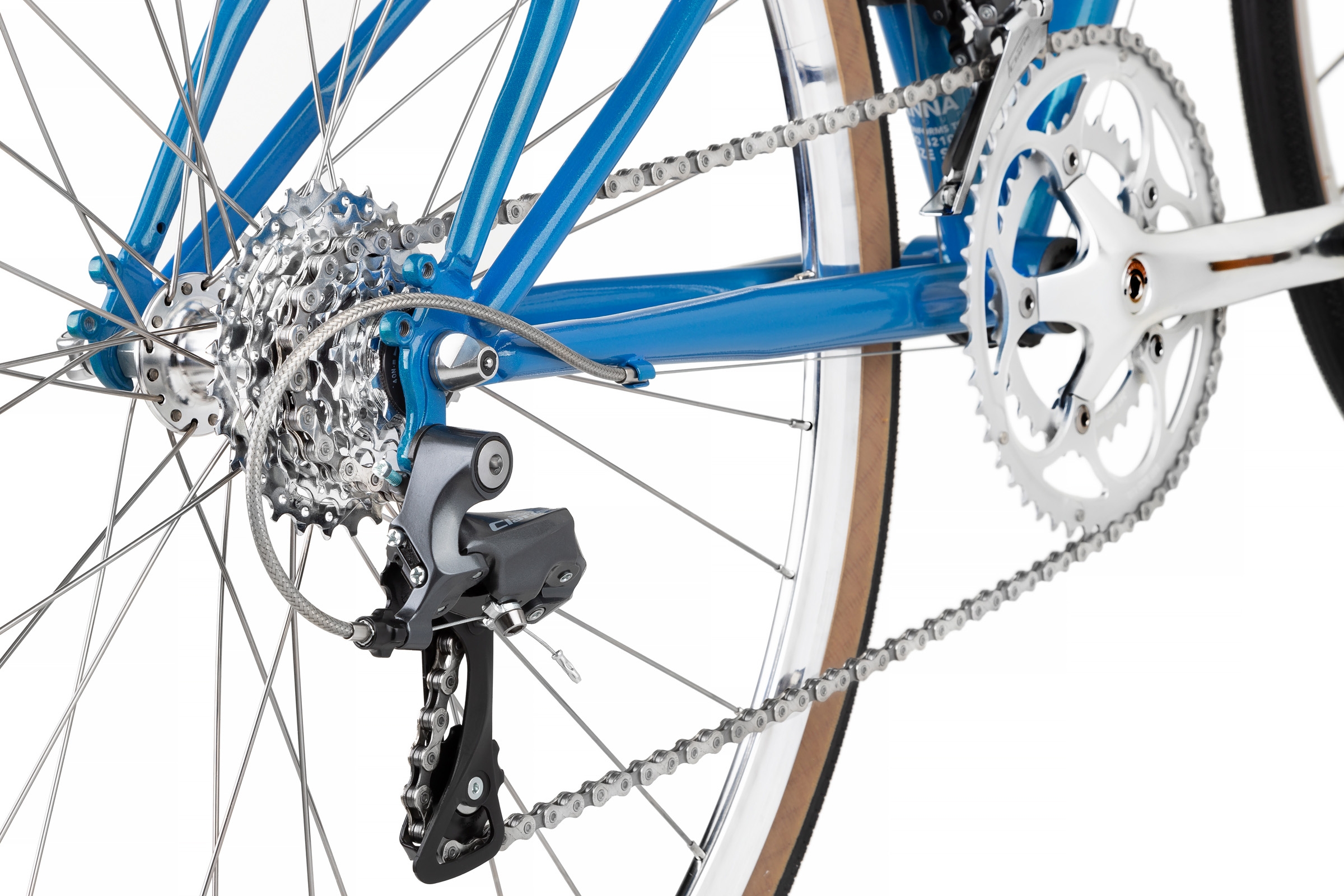

Crankset: Creme aluminium 42t, 170mm
Bottom bracket: square taper, 68mm shell
Deraileur front: Shimano Claris
Deraileur rear: Shimano Claris short cage
Cassette: Falcon 11-28, 8-speed
Chain/belt: KMC X8
Hub front: aluminium road hub, sealed bearings, 32H, QR
Hub rear: aluminium road hub, sealed bearings, 32H, QR
Rims: aluminium doublewall 700C, road racing
Tyres: WTB Expanse 700x32C
Carrier / Basket: *chrome plated front rack
Mudguards: ---
Headset: threaded, 1”
Light front: ---
Light rear: ---
Pedals: FP-980AZU
Spokes: stainless steel
Stand: ---
Additional: stylish bell
Weight: 10,6kg 11kg*
Seat Tube Diameter: 28,6 mm
Seatpost diameter: 26,6/350mm
Pedal thread: 9/16"
Stem clamp size: bar bore 26mm, dia 22,2mm,
Max tyre: 37-622, 700X35C
Electric Drive: ---
Battery: ---
