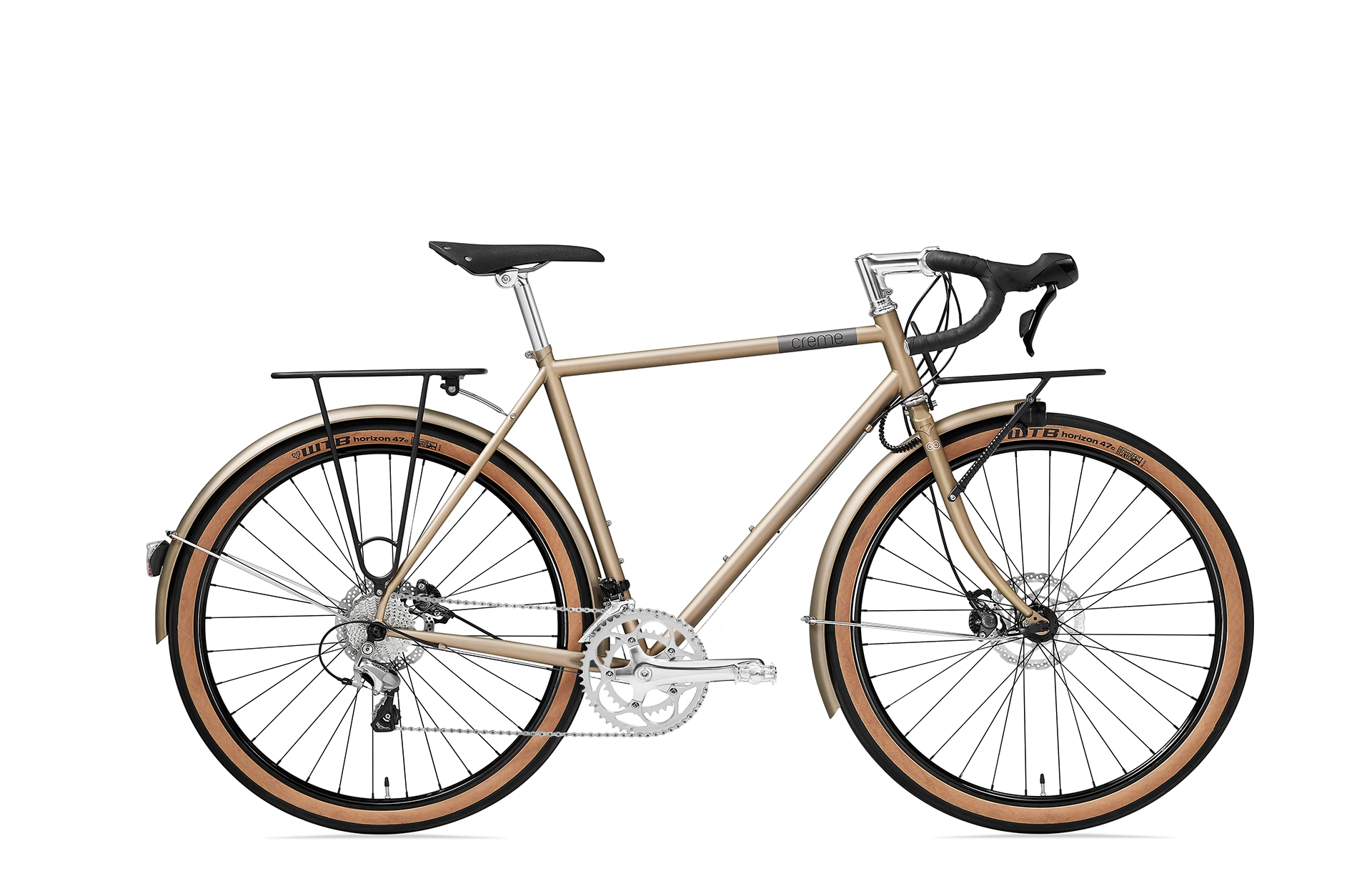

Frame: cromoly steel double butted frame with cast dropouts, Tange seat-tube clamp
Sizes: S / M / L / XL
Fork: cromoly steel fork, lugged, 1 1/8" with invest cast crown, 12mm through axle
Handlebar: aluminium, width: 420, reach: 83mm, drop: 107mm, outsweep: 25, barbore: 31,8mm
Grips: Brooks Cambium bar tape
Stem: aluminium a-head stem, extension 90mm, rise 7, 90mm for S, 100mm for M and L, 110mm for XL
Saddle: Brooks Cambium
Seatpost: Aluminium, 27.2mm
Brake front: Shimano ST-R7020 105 hydraulic disc wtih 160 mm rotor
Brake rear: Shimano ST-4700 Tiagra hydraulic disc with 160 mm rotor
Shifters: Shimano Tiagra ST-4700
Crankset: Creme custom 50/34 integrated axle
Bottom bracket: integrated
Deraileur front: Shimano Tiagra FD-4700
Deraileur rear:Shimano Tiagra RD-4700
Cassette: Shimano CS-HG500 11-34 10 speed
Chain/belt: TEC GT11
Hub front: aluminium, sealed bearings, 32h, centerlock, for 12mm through axle
Hub rear: aluminium, sealed bearings, 32h, centerlock, for 12mm through axle
Rims: disc brake, aluminium, double wall
Tyres: WTB Horizon 47-584, 650Bx47
Carrier / Basket: Front and rear aluminium painted racks
Mudguards: ---
Headset: threadless 1 1 /8''
Light front: ---
Light rear: ---
Pedals: FP-980AZU
Spokes: stainless steel
Stand: ---
Additional: stylish bell
Weight: 14kg
Seat Tube Diameter: 28,6 mm
Seatpost diameter: 27.2 / 350 mm
Pedal thread: 9/16"
Stem clamp size: bar bore 31.8
Max tyre: 47-584, 650b x 47
Electric Drive: ---
Battery: ---
